Process 1

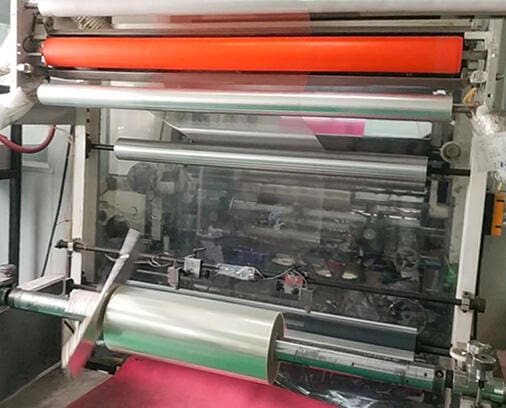

Standard VOID is printed on the original clear polyester through the hidden graphics plate. Meanwhile, add the extra protection layer under the security message film.

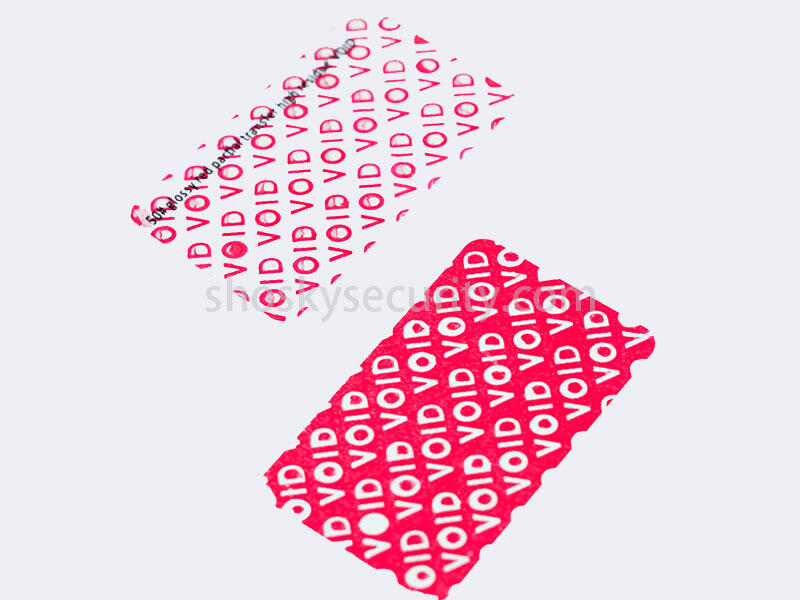

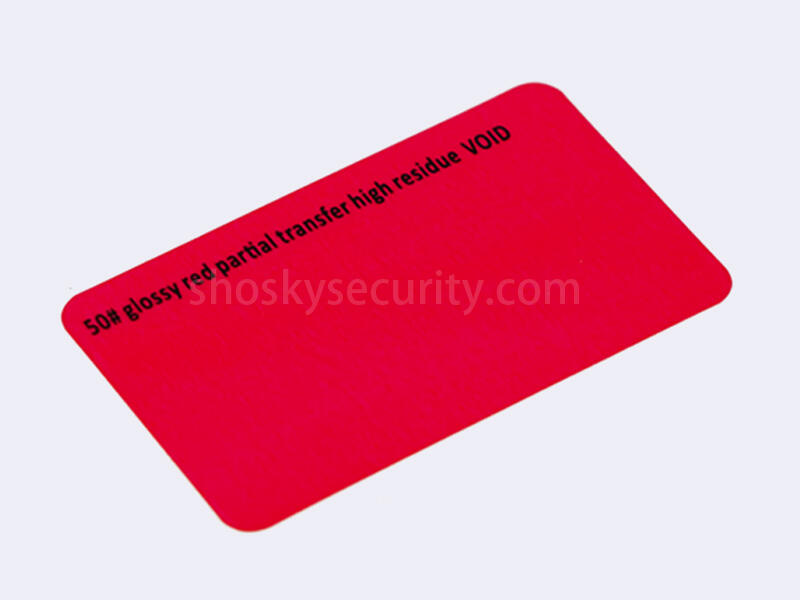

This is 50 microns glossy red partial transfer tamper-evident label.

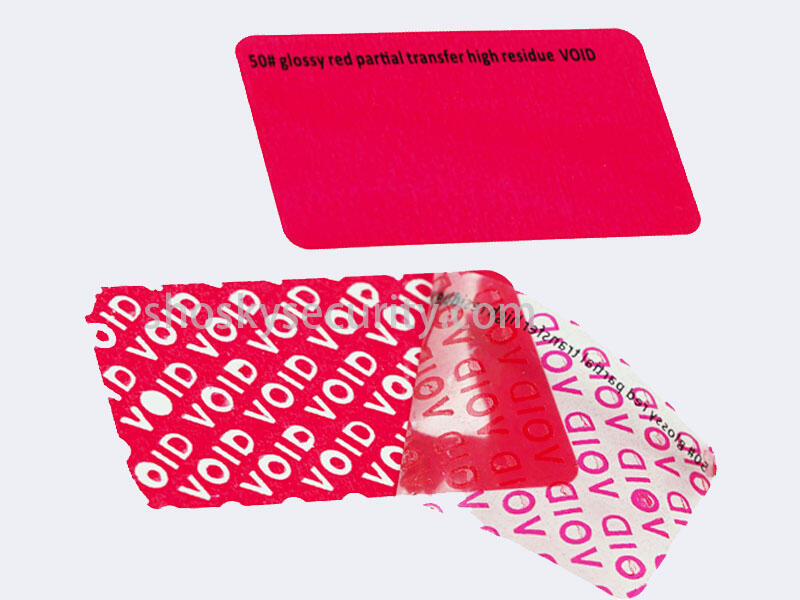

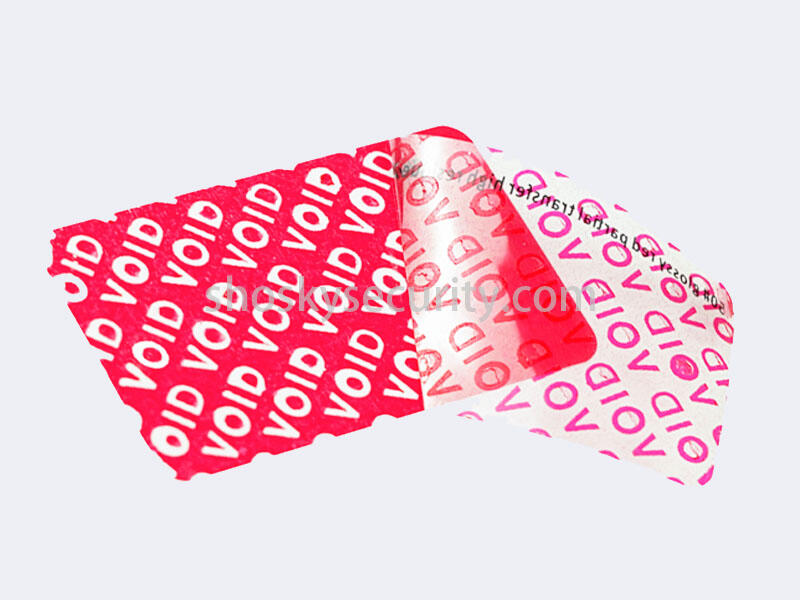

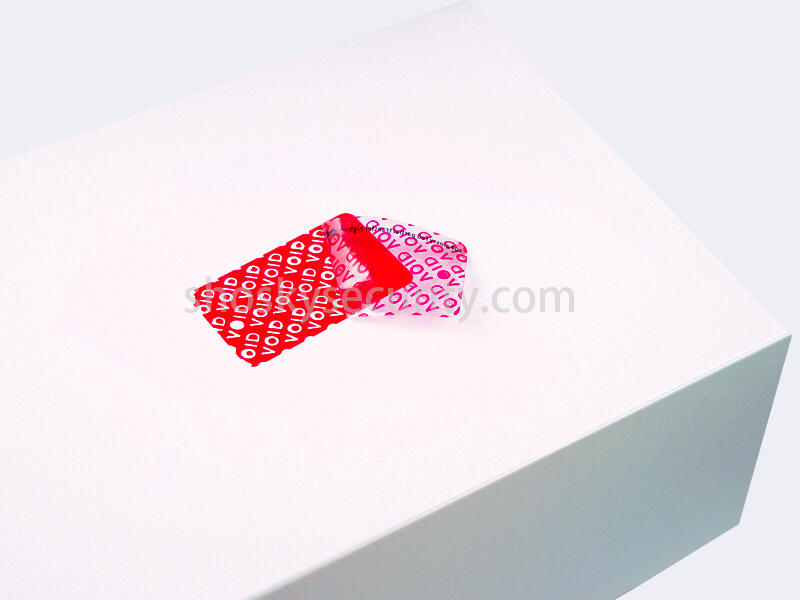

When the seal is removed, the hidden message is revealed on the glossy PET face material. The standard trigger message is OPEN VOID, OPENED, VOID, etc., but it can also be customized.

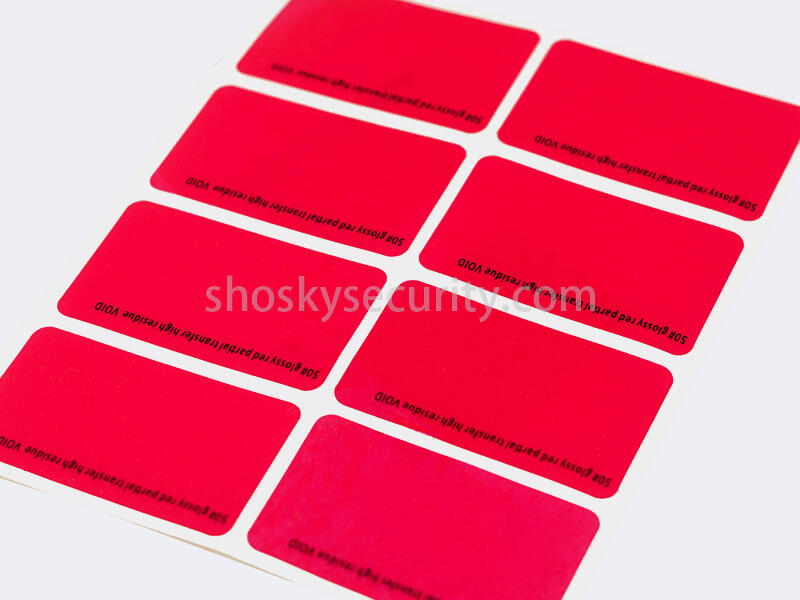

The adhesive layer will be partially transferred to the applied surface as well after peeling off the label. The label face can also be printed with the serial number, company name, logo, barcodes, etc. Custom colors are available when quantities as low as 265m2 of one jumbo roll 530mm*500m.
| Face stock | PET film |
| Face thickness | 50 microns |
| Color | Red |
| Finish | Glossy |
| Adhesive | Acrylic |
| Liner | Glassine paper |
| Security message | Standard void |
| Label Size | 30mm*60mm |
| Jumbo Roll Material Size | 530mm*500m |
| Temperature rage | 0°C ~ +110°C |
| Printing | With special top coating and is suitable for most of printing methods such as: thermal transfer, screen, silk, rotary printing, flexographic offset, digital printing etc. |
| Lead Time | Around 5days |
| Shelf Life | 1 year under normal condition, avoid direct sunlight and high humidity |
Glossy Red Partial Transfer Security Label:
Standard VOID is printed on the original clear polyester through the hidden graphics plate. Meanwhile, add the extra protection layer under the security message film.

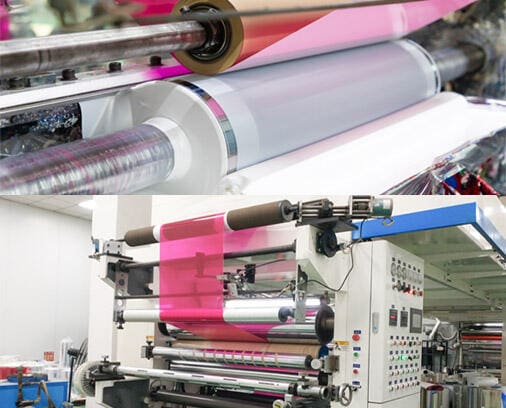

Red ink is printed on the security film with hidden message.
Coating machine compound void film, glue, and backing paper into one jumbo roll material.
Furthermore, a proprietary top coating layer will be added on the film face as well to be suitable for most of the various printing methods.

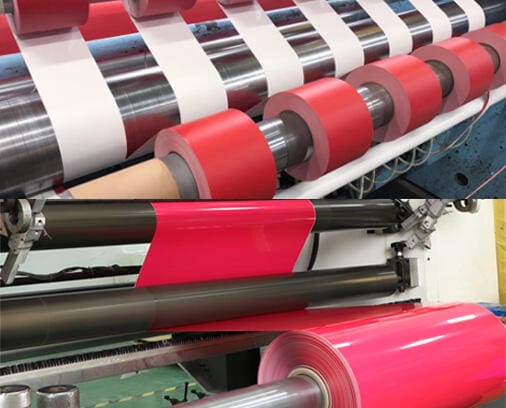

Slitting into small rolls and then print and die-cut it into the finished label.
Our security labels firstly are packed with glassine paper and then packed by the thick EPE foam package, the outermost layer is carton.
We use the standard carton size 40*40*29cm to pack tamper evident tape.
